Mainly used for over lock fabric.
| Item | Specification |
|---|---|
| Sewing thickness | ≤ 80 mm |
| Sewing speed | 3000 RPM |
| Stitch length | 30 mm |
| Machine size (L×W×H) | 3100 × 4100 × 900 mm |
| Total power | 3 kW |
| Air pressure | 0.6–0.8 MPa |
Connect the power supply (380V/220V) and air source (0.6–0.8 MPa). Check oil levels, install the correct needle, and ensure all safety guards are in place before starting.
Position the mattress or fabric under the sewing head. Adjust the head height according to the material thickness (≤ 80 mm).
Start the machine and guide the material along the edge. The machine operates at up to 3000 RPM with a stitch length of 30 mm, ensuring fast and precise edge locking.
When reaching a corner, smoothly turn the material to maintain a continuous, even seam without breaking the stitch.

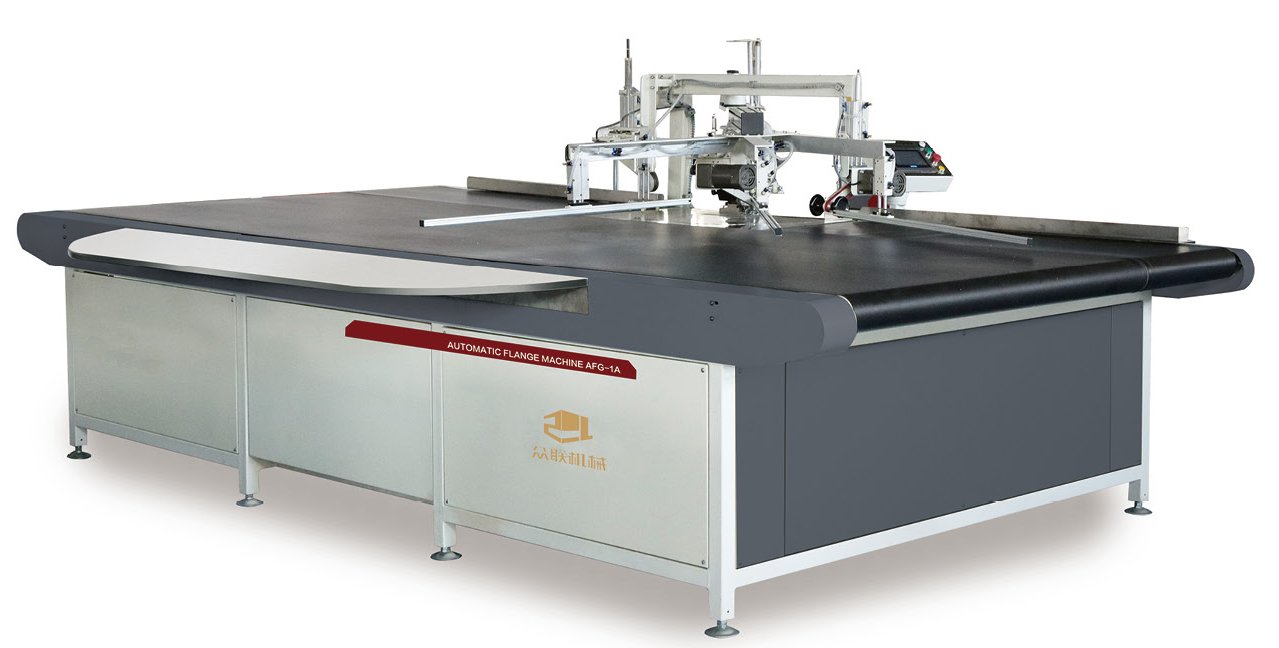

The ZL-AFG-1A is designed for edge locking on mattresses, quilting fabrics, upholstery panels, and other textile products with a maximum thickness of ≤ 80 mm.
It can operate at a maximum speed of 3000 RPM, ensuring high productivity while maintaining stitch quality.
The machine has a standard stitch length of 30 mm for strong, even seams.
Yes, it requires a stable air supply of 0.6–0.8 MPa to operate certain pneumatic functions.
Yes, it has a user-friendly control system. Basic operator training usually takes only 1–2 hours.
The machine’s overall dimensions are 3100 × 4100 × 900 mm, so we recommend allowing extra space for operator movement and material handling.
Clean the sewing area daily to remove dust and thread scraps.
Lubricate moving parts weekly.
Inspect and replace needles regularly.
Check the air supply system for leaks or pressure drops.
Always keep hands away from the needle and moving parts during operation, never run the machine without safety guards, and disconnect power before maintenance.
The standard warranty is 12 months from the delivery date, covering manufacturing defects (consumables like needles and belts are excluded).
