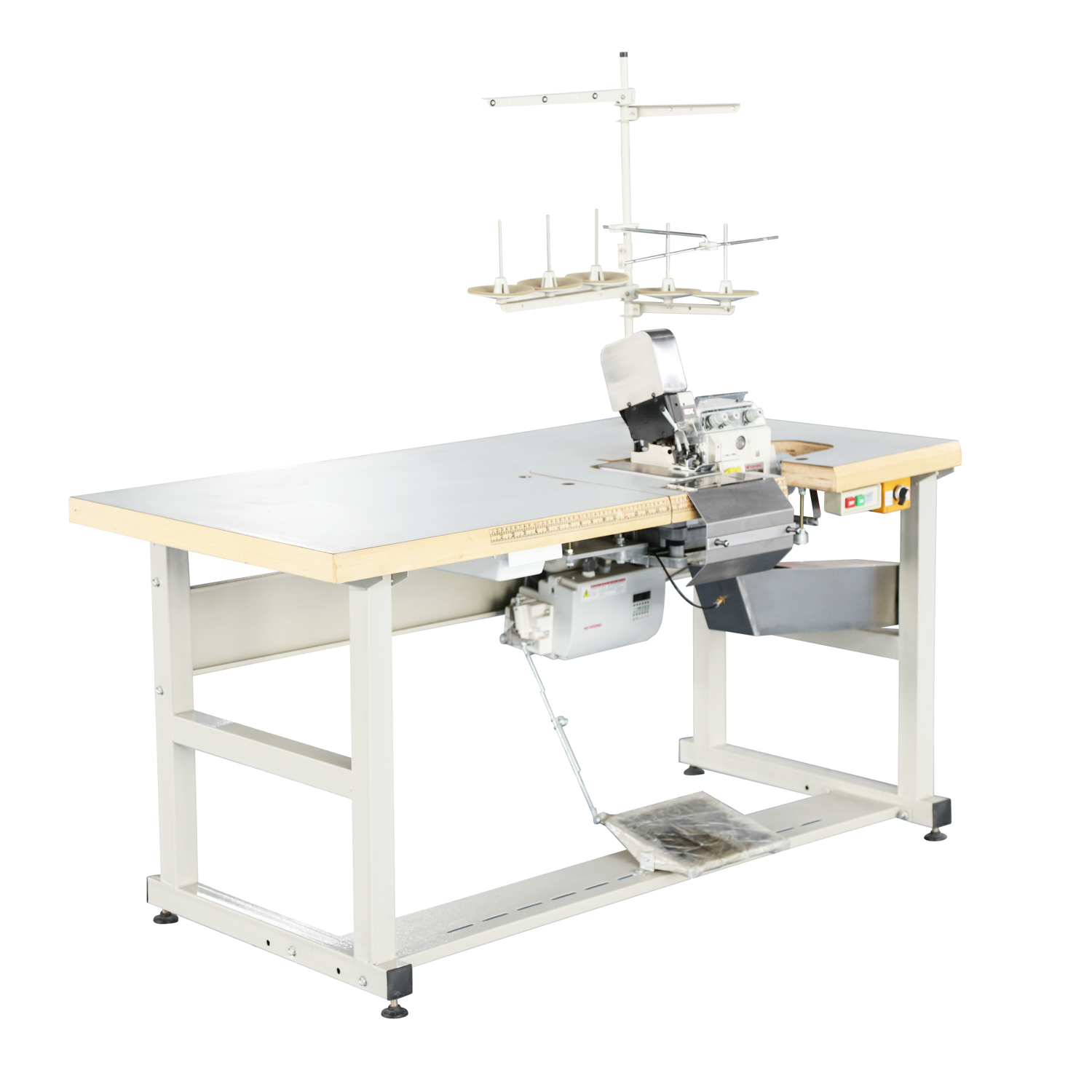

It is mainly used for trimming

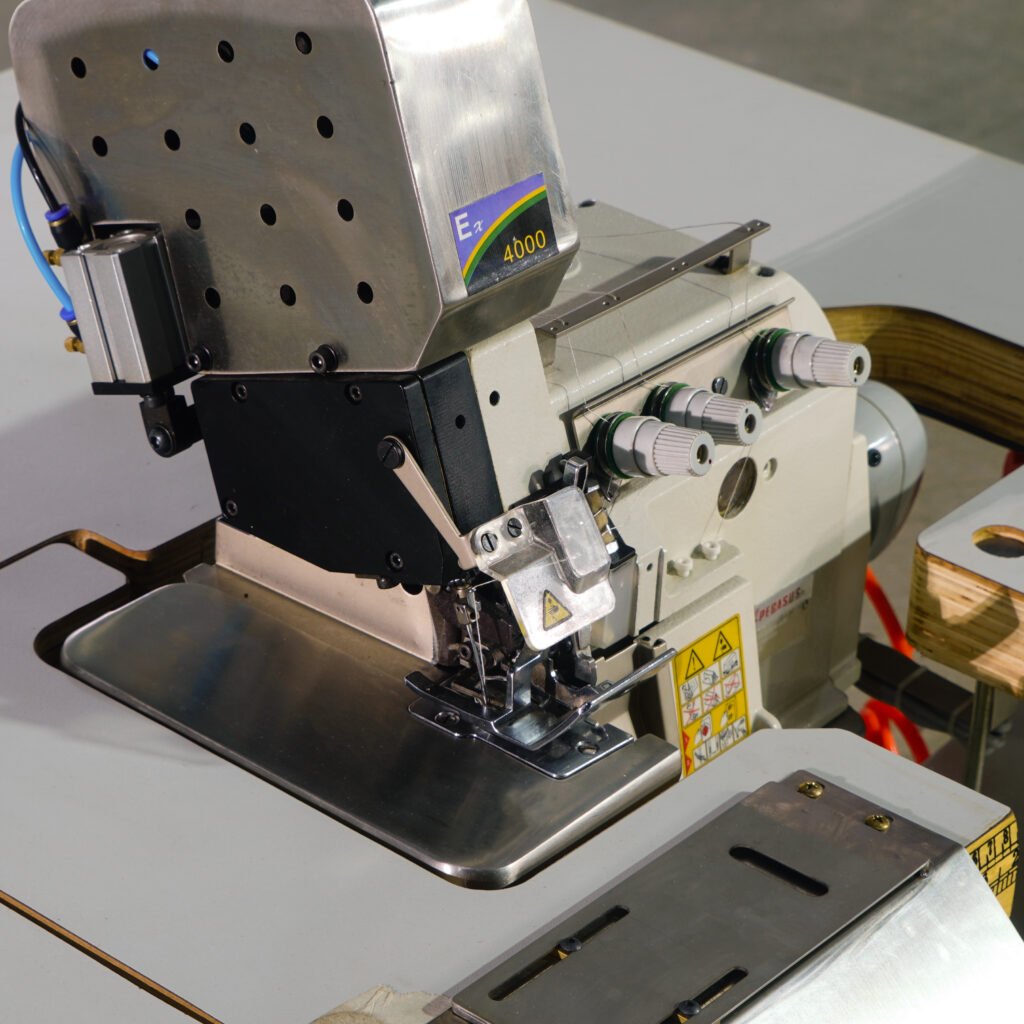

1.Japanimported Pegasus machine head
2.lmported motor, smooth operation, low noise, high speed
3.The controller controls the sewing speed;
4.With automatic oil supply system.
| Mattress Quilting Machine ZL-FG-8A - Technical Specifications | |
|---|---|
| Model | ZL-FG-8A |
| Power Supply | 380V / 50Hz |
| Total Power | 7.5 kW |
| Max Sewing Thickness | 80 mm |
| Working Table Width | 2000 mm |
| Quilting Width | 1500 mm |
| Sewing Speed | ≤ 3000 rpm |
| Machine Dimensions | 3500 × 3000 × 1600 mm |
| Machine Weight | 1300 kg |
| Application | Suitable for quilting mattresses, mattress panels, bed covers, and similar thick textile products. |
High-strength non-woven fabric and high-carbon steel wire are loaded into the machine to serve as the base for spring production.
The steel wire is coiled into mini springs (Ø28–50mm, height 25–40mm) at a high speed of 240 pcs/min.
Each spring is placed into fabric pockets and sealed using ultrasonic welding—no glue, fully eco-friendly.
The machine arranges the pocketed springs into custom layouts based on mattress, pillow, or seat requirements.
The machine is capable of producing mini pocket springs with the following specifications:
Diameter: Ø28–50 mm
Height: 25–40 mm (customizable)
Coil count and stiffness can also be customized based on your mattress design.
The coiling speed can reach up to 240 springs per minute.
Final output speed depends on your chosen configuration (single/double line, with or without automation).
One full-size mattress spring unit (Queen size) can be completed in 2–4 minutes.
Yes. Our machine supports custom spring arrangements like 3-zone, 5-zone, or hybrid layouts. You can program the layout through the touch screen control system.
We use ultrasonic welding, which requires no glue.
This is an eco-friendly, clean, and cost-effective sealing method that ensures strong and durable spring pockets.
It supports non-woven fabric rolls ranging from 60gsm to 100gsm, width can be adjusted depending on spring size.
You can use either hot-melt fabric or ultrasonic-sealable fabric.
Yes, the machine can be customized to support mattresses of various sizes:
Twin / Single / Full / Queen / King / Custom
Layout and dimensions are adjustable via the control panel.
Yes. We offer different levels of automation:
Semi-automatic: operator-assisted feeding or unloading
Fully automatic line: includes coiling, welding, layout forming, cutting, stacking, and gluing
You can also integrate it with automatic mattress packaging machines for full-line production.
All machines are CE certified and meet international standards. We can provide RoHS, ISO, or country-specific compliance documents as required.
The machine is equipped with a user-friendly touch screen interface.
Only basic training is needed (we provide remote/onsite training).
Maintenance includes regular cleaning, lubrication, and sensor checks. Most users can maintain it with minimal support.
Tell us what you need — we’ll handle the rest.
