GDZ9CU-63/GDZ9CU-63DW Pocket Spring Machine is a new generation of high-speed CNC pocket spring machine designed by our company according tomarket demand, with multiple patented technologies. It is equipped with a fully CNC spring coiling machine head and has the advantages of high speed,simple operation, stable production, and material saving. It is a specialized equipment for producing pocket spring mattresses or pocket spring sofas
| Technical Specifications – GDZ9CU-63 / GDZ9CU-63DW Pocket Spring Machine | |
|---|---|
| Model | GDZ9CU-63 / GDZ9CU-63DW |
| Max Speed | 180 pcs/min |
| Air Requirement | 0.3m³/min, 0.6MPa |
| Power Requirement | 3 Phase, 380V, 50Hz (customizable) |
| Total Power | GDZ9CU-63: 40kW GDZ9CU-63DW: 45kW |
| Gross Weight | GDZ9CU-63: approx. 4250kg GDZ9CU-63DW: approx. 4750kg |

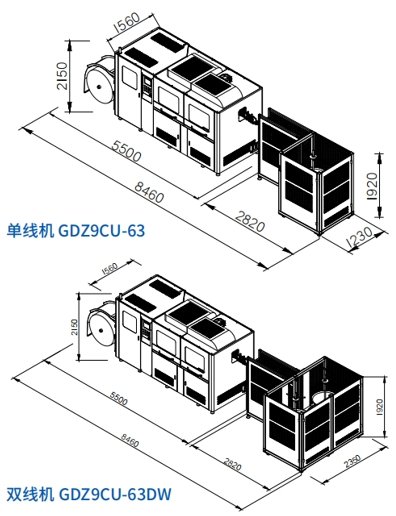

| Machine Size (L×W×H) | GDZ9CU-63: 8460×1560×2150mm GDZ9CU-63DW: 8460×2350×2150mm |
| Material Specifications | |
| Wire Diameter | φ1.8-2.2mm (customizable) |

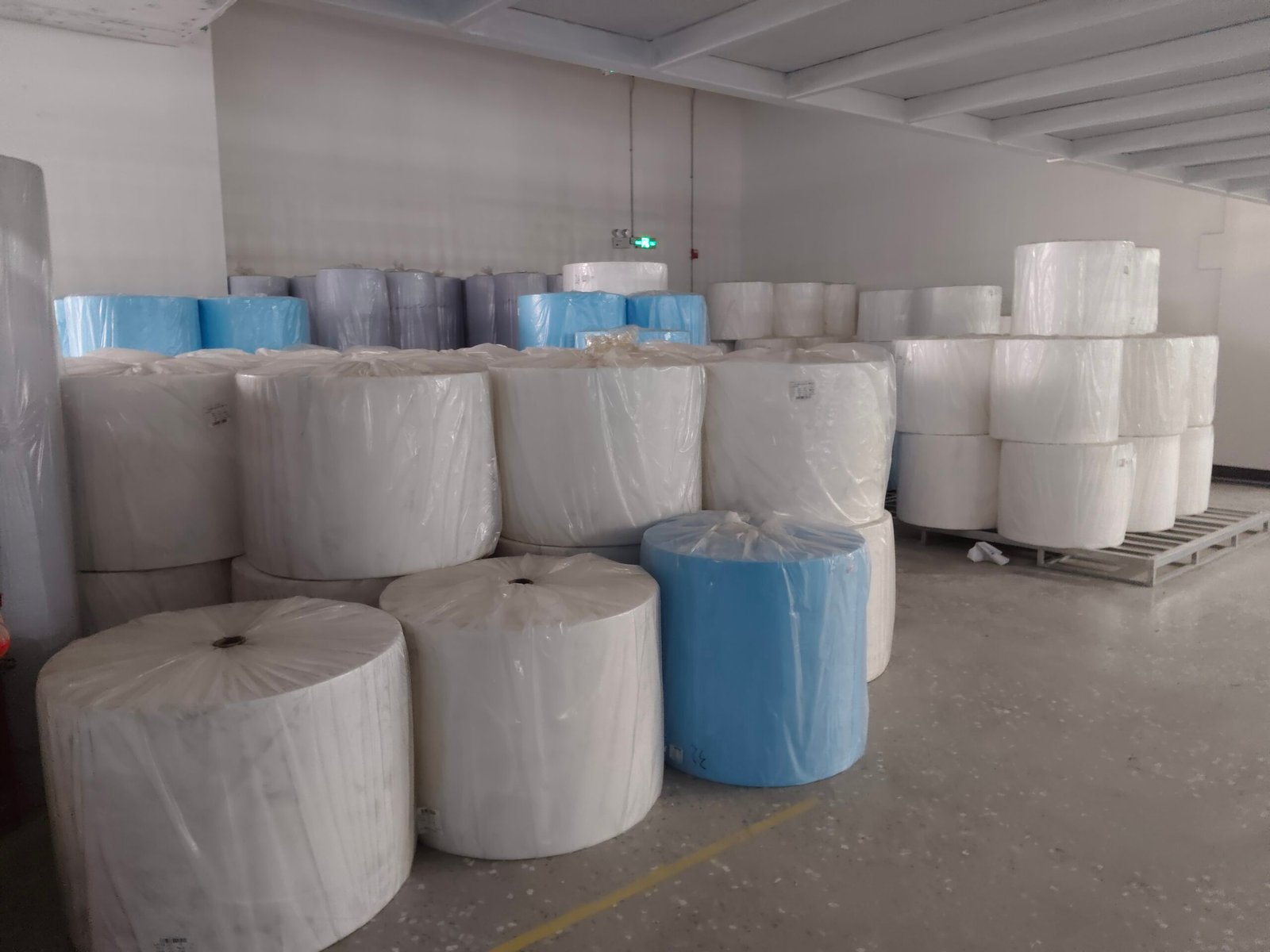

| Non-woven Fabric Thickness | 60-90g/m² |
| Non-woven Fabric Width | 320-680mm |
| Non-woven Inner Diameter | ≥ 60mm |
| Non-woven Outer Diameter | ≤ 1000mm |
| Product Specifications | |
| Pocket Spring Height | 80-250mm (customizable) |
| Spring Central Diameter | φ55-75mm (customizable) |
Pre-Operation Checklist Ensure the machine is properly installed on a flat, stable surface. Connect to the correct power supply (3Phase 380V 50/60Hz). Attach air source (0.6–1.0MPa) and check for air leaks. Load mattress tape correctly and check threading according to diagram. Verify needle, thread, belts, and safety sensors before powering on.
Switch on the power and air compressor. Set sewing parameters: stitch length (3–7mm), mattress thickness (50–450mm). Place mattress on the conveyor system, aligning the starting edge. Select operation mode: Manual / Semi-Auto / Full-Auto. Press Start to begin tape edging automatically.
Max Speed: 2800 RPM Stitch Length Control: 3–7mm adjustable via touchscreen or dial Mattress Thickness Range: 50mm to 450mm Turntable Auto-Flipping: mattress flips automatically to sew all four sides Sewing Head Tilt Function: head lifts or tilts automatically at mattress corners Auto Cornering: seamless rotation when turning corners Tape Tension Adjustment: precise control over edge tape tension
Supports spring, foam, latex, or hybrid mattresses Suitable for twin, full, queen, and king-size mattress edging Compatible with most commercial tape widths
It produces innerspring units for mattresses, including Bonnell springs, offset springs, continuous coils, or pocket (encased) springs, depending on the model.
Our machine supports high-carbon steel wire to form spring units with customizable specifications such as diameter, height, and coil turns. Wire diameters typically range from 1.8mm to 2.2mm.
Yes. Most of our models are fully automated, including wire feeding, coiling, knotting, heat treatment, and spring counting/stacking. Semi-automatic versions are also available.
Absolutely. The mattress spring machine can be connected with pocket spring assembly lines, gluing stations, compression units, and tape edge machines to form a complete workflow.
Depending on the model, our machines can produce up to 180 springs per minute. Output varies based on spring size and operation mode.
High-carbon steel wire (typically 1.8mm–2.4mm), and in some cases, non-woven fabric (for pocket spring types). Ensure consistent quality materials for stable production.
Our machines are equipped with an automatic tempering system (electrical or gas-based) to ensure spring strength and durability post-coiling.
Routine maintenance includes lubrication of moving parts, wire tension checks, and periodic calibration of coiling heads. Detailed manuals and training are provided.
