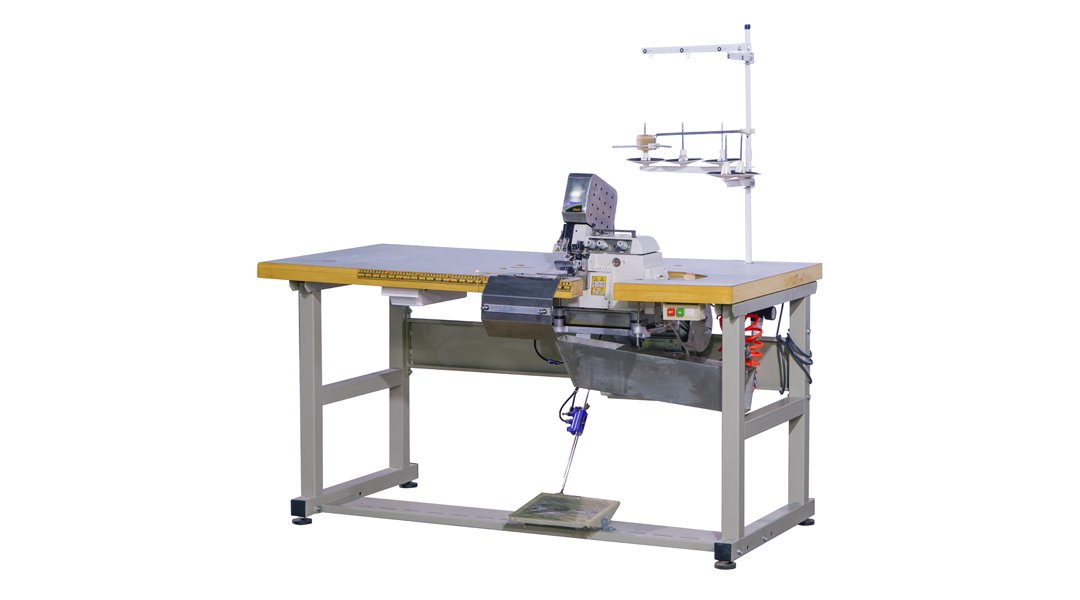

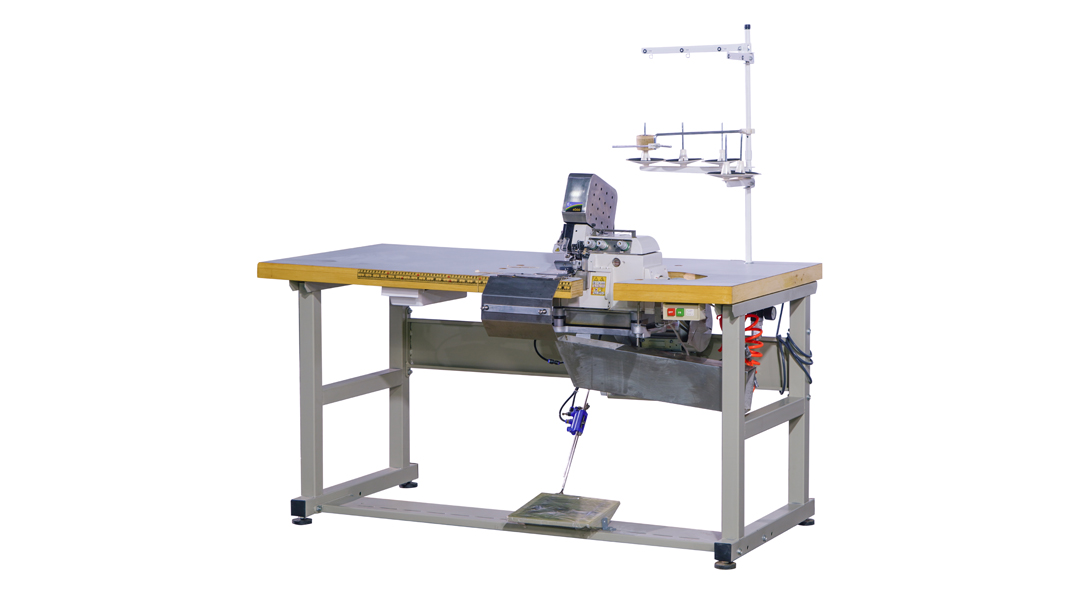

Mainly used for over lock fabric.
1. Pegasus technology assembly head;
2. It has a needle and thread cooling device to avoid . broken needles, broken wires and jumpers
3. Imported motor is used to precisely control the sewing speed
4. The automatic lifting of the starter control presser foot is ad-opted, the operation is stable and the noise is low
5. Can be sewn at the same time.
| Mattress Sewing Machine For Sale - Model ZL-FG-5A | |
|---|---|
| Seam Thickness | 20-70 mm |
| Seam Pitch | 2-5 mm |
| Seam Width | 18 cm, 20 cm, 25 cm, 30 cm, 35 cm |
| Rated Air Pressure | 0.5-0.8 MPa |
| Rated Power Supply | 220V / 50Hz |
The mattress is placed flat on the sewing table. The operator adjusts its position to ensure the edges are aligned. This step ensures accurate seam stitching and optimal edge appearance.
Adjust the seam width (18–35 cm) and thickness (20–70 mm) using either the digital control panel or mechanical levers. This allows the machine to match various mattress designs and materials.
Once the settings are in place, the machine begins precise high-speed stitching. The seam pitch can be adjusted between 2–5 mm to achieve strong and neat lock stitching on any edge.
Optional auto-feed conveyor helps move the mattress steadily through the machine, ensuring straight seams and consistent stitching—especially useful for thick or large-size mattresses.
The ZL-FG-5A is suitable for most standard mattress types, including:
Pocket spring mattresses
Foam and latex mattresses
Hybrid mattresses with multilayer structures
Edge panels and side borders
Seam thickness: 20–70 mm
Seam width options: 18 cm / 20 cm / 25 cm / 30 cm / 35 cm
This allows for flexibility when stitching different mattress designs.
Yes, the machine supports adjustable seam pitch from 2 mm to 5 mm, allowing you to control stitch density based on product quality requirements.
Yes. It operates using compressed air with a rated pressure of 0.5–0.8 MPa, ensuring consistent fabric pressing and seam quality during stitching.
What is the power supply requirement?
The machine runs on 220V / 50Hz single-phase power. If your local voltage differs, we can provide customization or transformers upon request.
Absolutely. The ZL-FG-5A is designed for user-friendly operation with:
Simple adjustment knobs or digital control panel
Quick-change guides for seam width
Minimal training required for skilled operators
Auto-flipping and feeding conveyor systems are optional upgrades. If you need these features for higher production efficiency, please mention it when ordering.
Routine maintenance includes:
Regular lubrication of moving parts
Checking and replacing needles and threads
Cleaning lint and dust from stitch area
Monitoring air pressure and seals
The machine is designed to be low-maintenance and long-lasting.
