Primarily used for mattress edge binding.

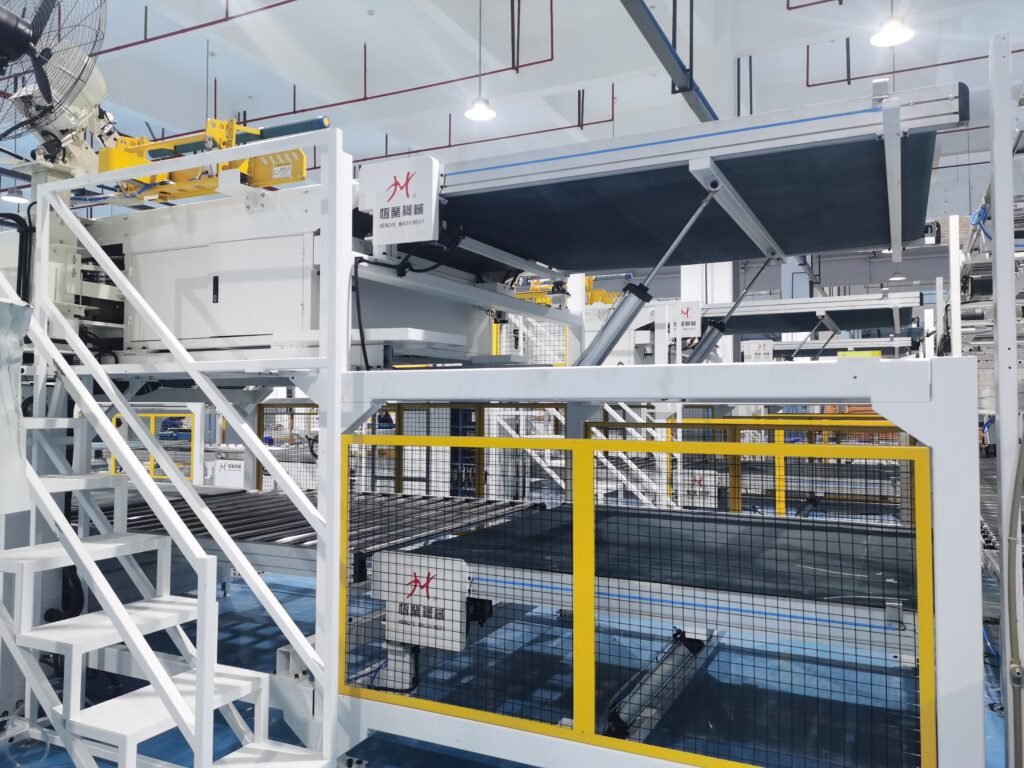

1. Automatic mattress flipping function reduces labor costs;
2. Dual-side flipping design effectively protects mattresses;
3. Automatic cornering function enables easier operation;

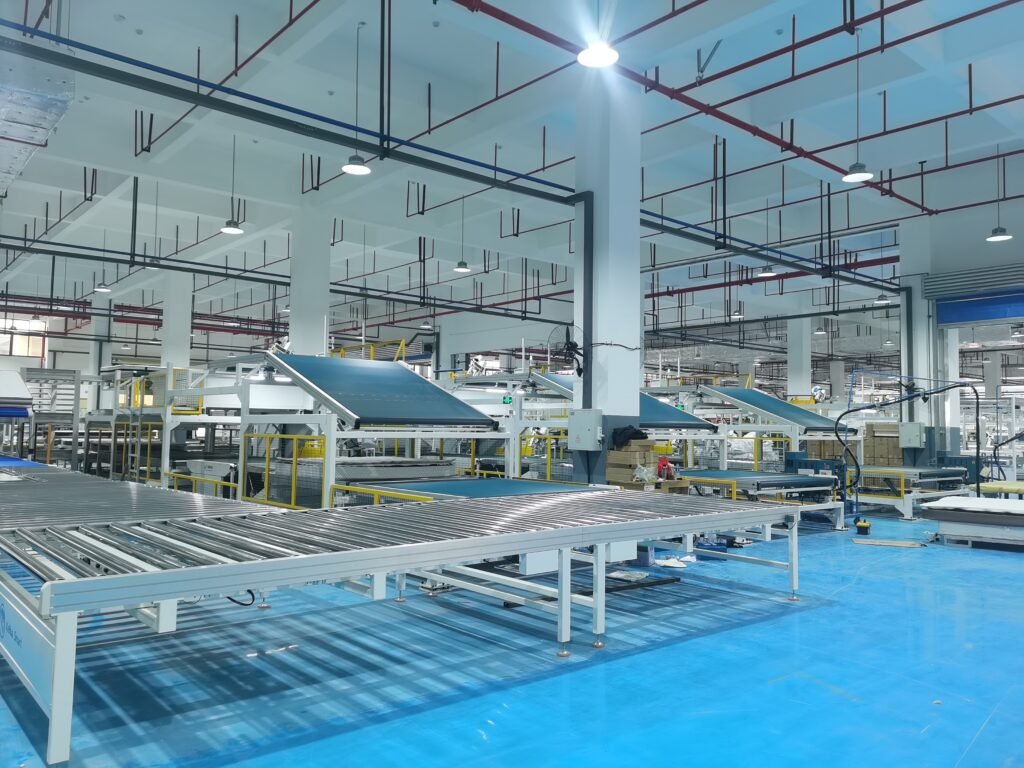

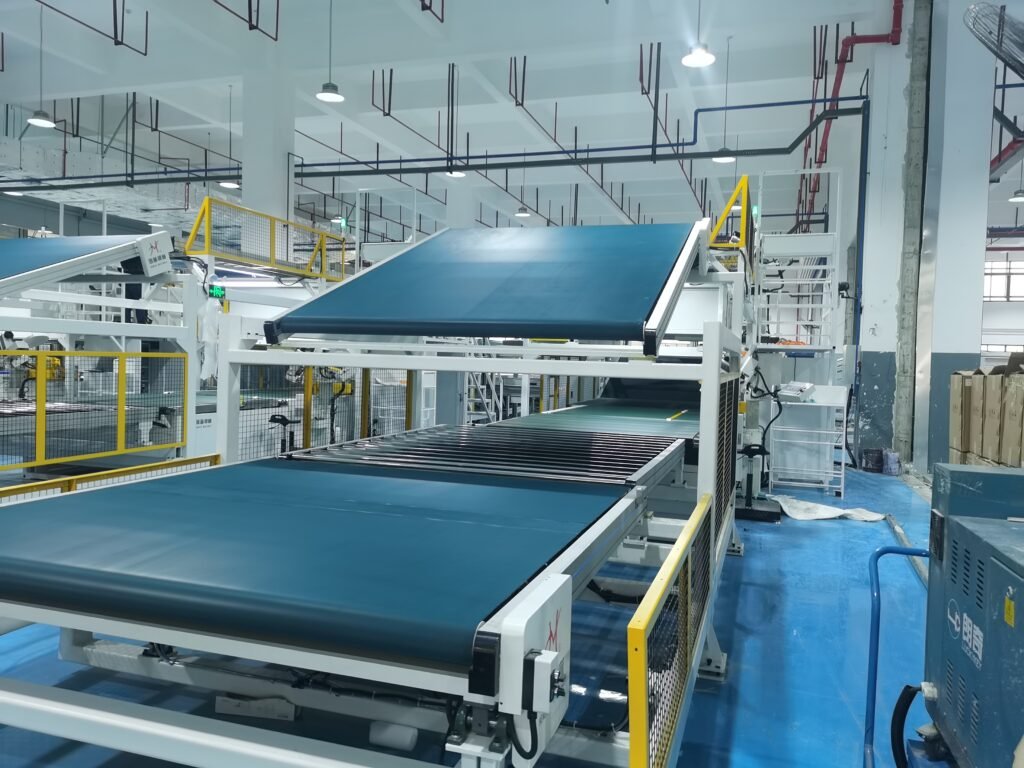

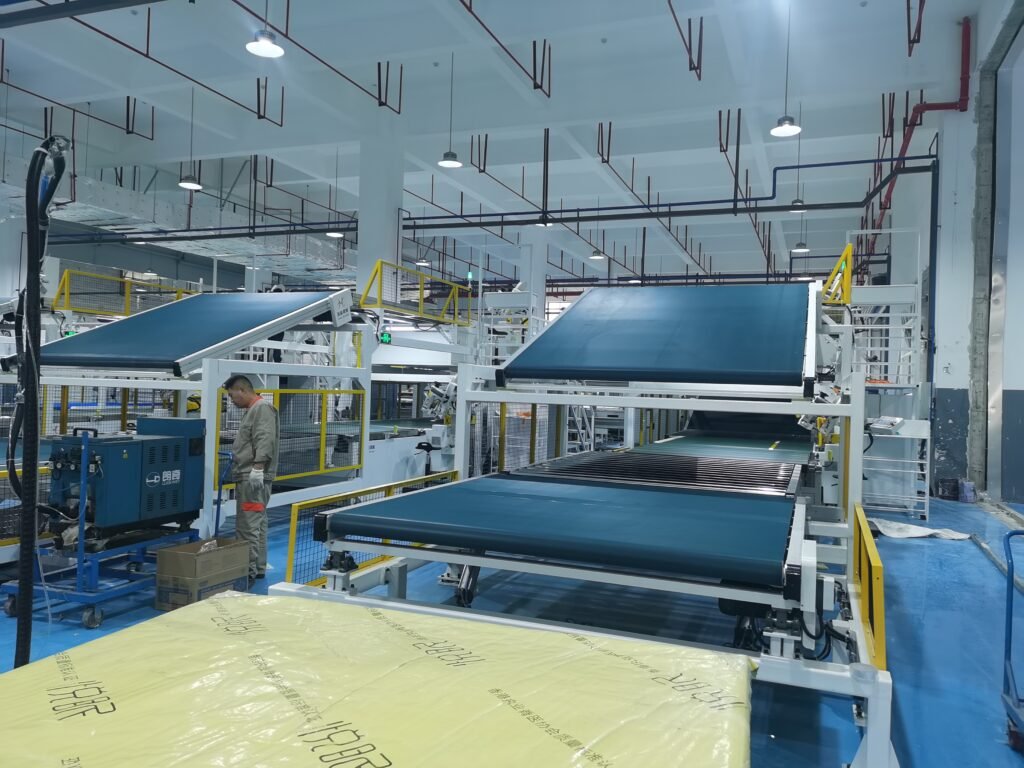

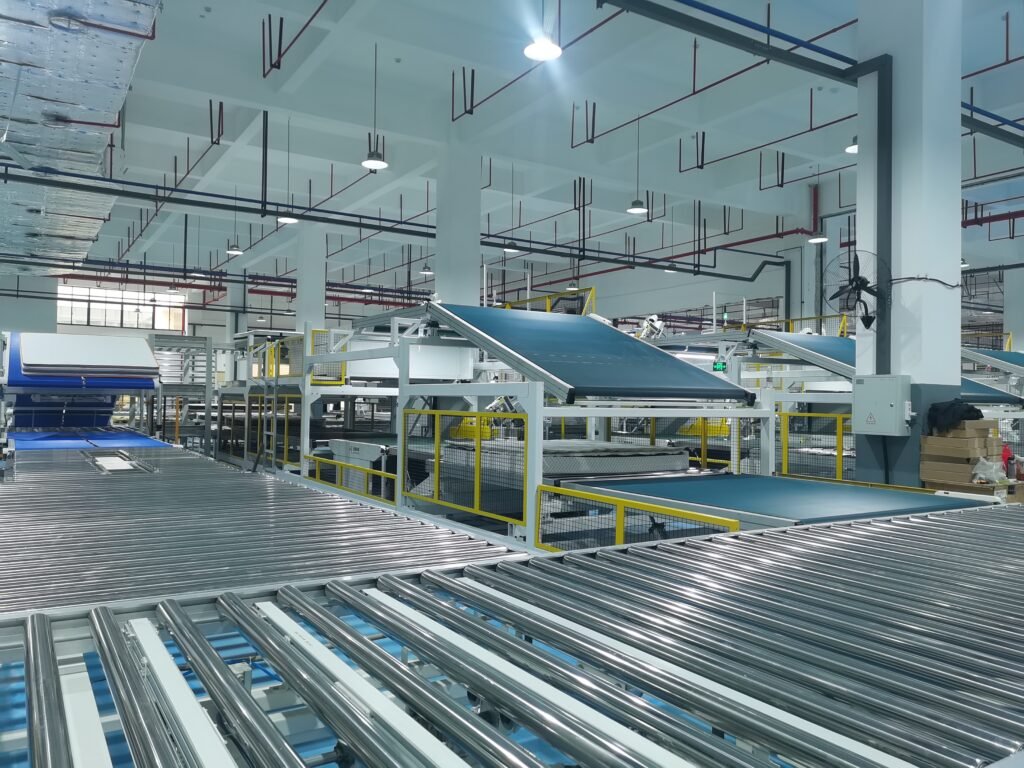

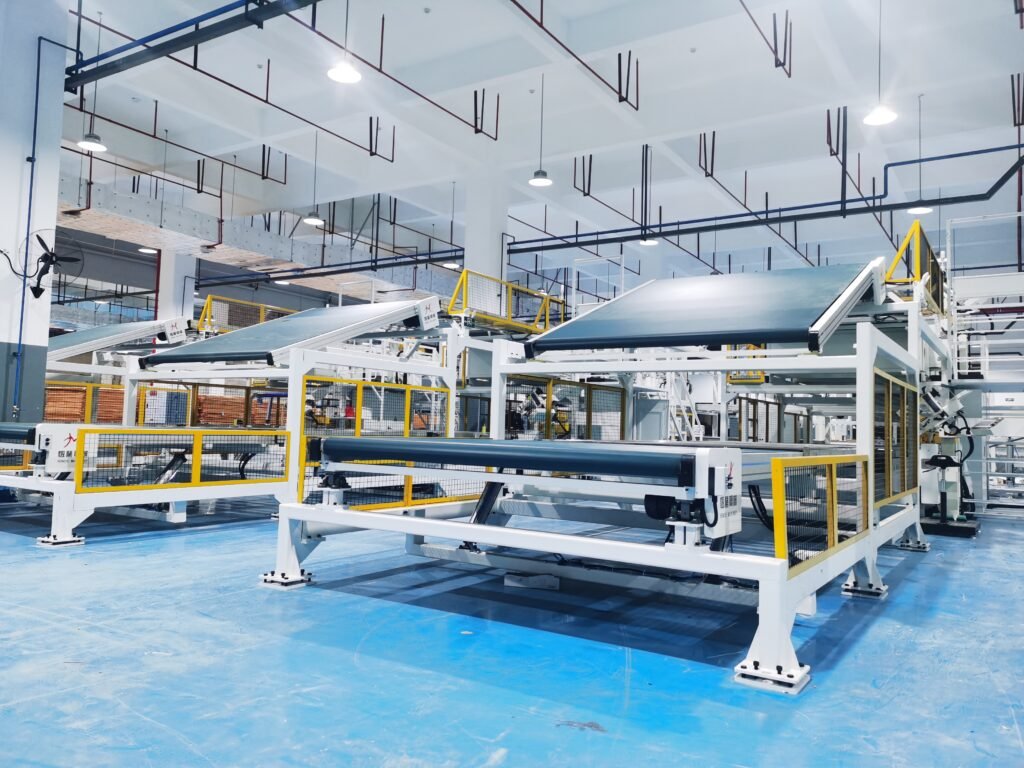

4. Integration of production lines to ensure efficient production of standardized products;
5. Touchscreen controls head tilt angle and lifting mechanism;
6. When the mattress turns, the sewing machine head will automatically rise.
| Item | Specification |
|---|---|
| Production efficiency | 15–20 sheets/hour |
| Sewing thickness | 50–450 mm |
| Maximum speed | 2800 RPM |
| Stitch length | 3–7 mm |
| Machine weight | 1400 kg |
| Rated power | 2.8 kW |
| Rated power supply | 3‑Phase 380 V 50/60 Hz |
| Rated air pressure | 0.6–1.0 MPa |
| Frame size (L×W×H) | 3820 × 2700 × 900 mm |
Before starting, ensure the machine is placed on a stable surface and connected to the correct 3-phase 380V 50/60Hz power supply. Connect the air supply (0.6–1.0MPa) and verify that all safety guards are in position.
Place the mattress on the conveyor or working platform. Align it so the edge to be sewn faces the sewing head. Ensure the tape roll is properly installed and threaded through the guide system.
Set the sewing speed according to your product requirements (up to 2800RPM). Adjust the stitch length between 3–7mm for the desired seam quality. Select the correct presser foot pressure to match mattress thickness (50–450mm).

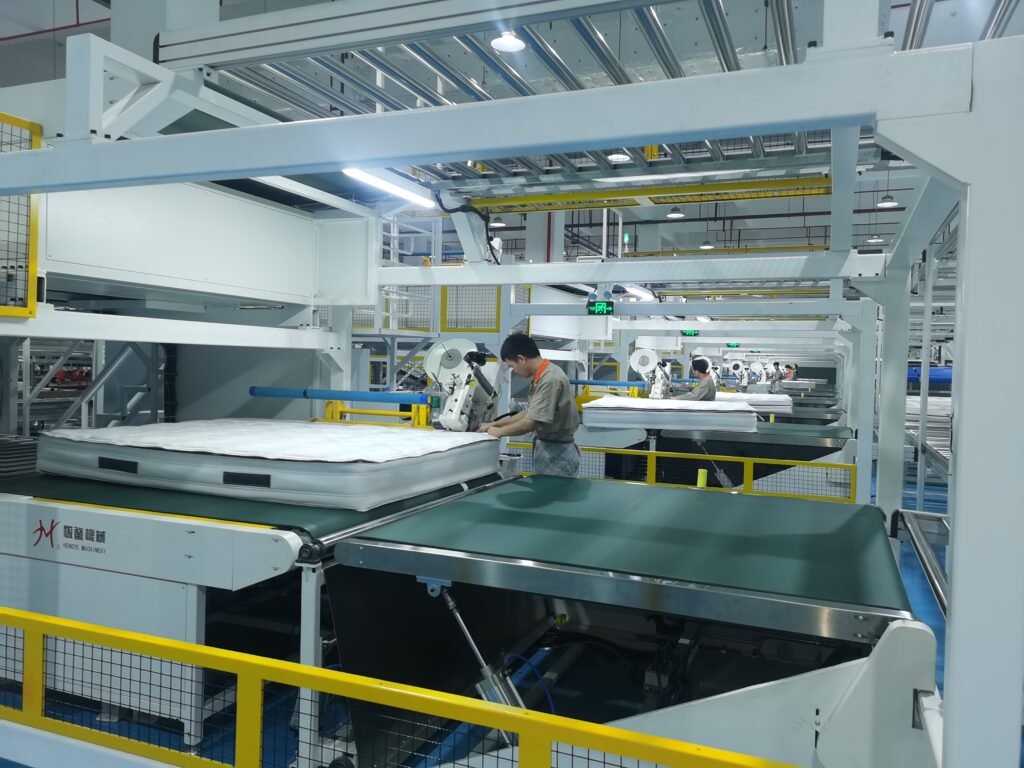

Start the machine and guide the mattress smoothly along the sewing head. The tape will be sewn to the edge in a continuous, uniform seam. Keep hands clear of moving parts for safety.
This machine is suitable for a wide range of mattresses, including spring mattresses, latex mattresses, memory foam mattresses, cotton mattresses, and multi-layer composite mattresses. It supports sewing thickness from 50 mm to 450 mm and handles materials such as knitted fabric, woven fabric, jacquard, latex, memory foam, sponge, and composite fabrics.
The maximum sewing speed is 2,800 stitches/minute. Speed can be adjusted to match different materials and processes, ensuring both productivity and sewing quality.
Depending on mattress size and sewing complexity, the machine can produce 15–20 mattresses per hour, making it suitable for medium to large-scale production.
It supports straight sewing and turning for corner work, adjustable stitch length (3–7 mm), and bone strip reinforcement for edge durability.
Yes. It is designed for semi-automatic operation with simple controls. Operators receive training for quick setup and smooth workflow.
The machine is compatible with standard mattress production line layouts. It requires 3-phase 380V power and 0.6–1.0 MPa air pressure, making it easy to integrate with existing equipment.
Built with high-quality motors, precision sewing components, and a sturdy frame, the machine ensures stability at high speed and long-term operation with minimal vibration.
We provide on-site installation and commissioning. Our after-sales team offers technical support, maintenance, and spare parts supply to ensure continuous production.
Production efficiency: 15–20 sheets/hour
Sewing thickness: 50–450 mm
Max speed: 2800 RPM
Stitch length: 3–7 mm
Machine weight: 1400 kg
Rated power: 2.8 kW
Power supply: 3-Phase 380V 50/60Hz
Air pressure: 0.6–1.0 MPa
Frame size: 3820 × 2700 × 900 mm
