GDZ9CE-89/GDZ9CE-89DW Pocket Spring Machine is a new generation of high-speed CNC pocket spring machine designed by our company according tomarket demand, with multiple patented technologies. It is equipped with a fully CNC spring coiling machine head and has the advantages of high speed,simple operation, stable production, and material saving. It is a specialized equipment for producing pocket spring mattresses or pocket spring sofas.
| Machine Model | GDZ9CE-89 | GDZ9CE-89DW | |
|---|---|---|---|
| Efficiency | Up to 180 pcs/min | ||
| Air Requirement | 0.3m³/min, 0.6MPa | ||
| Power Requirement | 3P 380V 50Hz (customizable) | ||
| Total Power | 40 kW | 45 kW | |
| Gross Weight | About 4500 kg | About 5000 kg | |

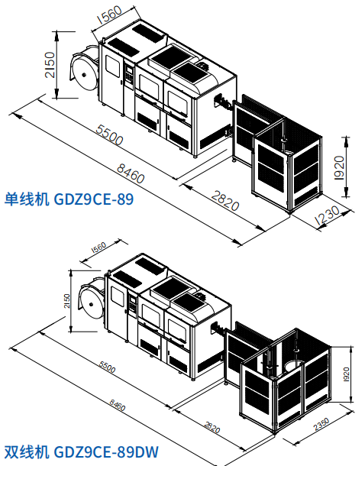

| Machine Size (L×W×H) | 8460 × 1560 × 2150 mm | 8460 × 2350 × 2150 mm | |
| Material Specifications | |||
| Wire Diameter | φ1.8–2.2 mm (customizable) | ||
| Non-woven Fabric Thickness | 60–90 g/m² | ||
| Non-woven Fabric Width | 320–680 mm | ||
| Inner Diameter of Non-woven | ≥ 60 mm | ||
| Outer Diameter of Non-woven | ≤ 1000 mm | ||
| Product Specifications | |||
| Pocket Spring Height | 80–250 mm (customizable) | ||
| Spring Central Diameter | φ55–75 mm (customizable) | ||
High-strength non-woven fabric and steel wire are loaded into the machine as raw materials for pocket spring production.
Steel wire is automatically fed and coiled into individual springs (Ø55–75mm, height 80–250mm) at high speed up to 180 pcs/min.
Each spring is inserted into non-woven fabric and sealed using ultrasonic welding — no glue needed, environmentally friendly and precise.
Finished pocket springs are automatically arranged into rows and columns to match custom mattress or pillow layouts.
GDZ9CE-89 is a single-line pocket spring machine, producing one spring chain at a time.
GDZ9CE-89DW is a dual-line version, capable of producing two chains simultaneously — doubling output while maintaining the same floor space.
Both models can reach up to 180 springs per minute, depending on spring size and material quality.
Wire Diameter: φ1.8–2.2 mm
Non-woven Fabric: 60–90g/m², Width 320–680 mm
(Custom specifications are available upon request.)
Spring height: 80–250 mm
Spring diameter: φ55–75 mm
Custom heights or diameters can be supported with adjustment or customization.
Yes. Each spring is sealed using ultrasonic welding — no glue is required. This ensures strong, clean, and eco-friendly bonding.
Usually 2–3 working days. We provide:
On-site or remote installation
Operation training
Troubleshooting support
Yes. The machine is equipped with an intelligent touchscreen control panel, with simple settings and real-time monitoring. Basic training is sufficient.
Yes. It can automatically arrange springs into customized patterns for different mattress sizes or core designs.
Power: 3-phase 380V 50Hz (customizable)
Air Supply: 0.3m³/min, 0.6MPa
