1.Adapt to cylindrical and barrel shape pocket springs;
2.Adapt to different heights and diameters pocket springs;
3.Easy for operation and adiustment.
4.With ultrasonic welding function, savematerials.
5.Calculation and detective at the same time.
| Item | Specification |
|---|---|
| Machine model | QD5 Pocket Spring Cutting Machine |
| Efficiency | About 25 cuts/min |
| Interval of pocket spring (between cuts) | ≥ 1 pocket |
| Air requirement | 0.3 m³/min, 0.6 MPa |
| Power requirement | 3P 380 V 50 Hz (can be customized) |
| Total power | 3 kW |
| Gross weight | About 900 kg |

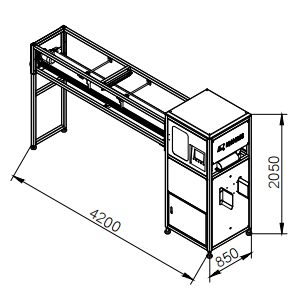

| Machine size (about) | 4200 × 850 × 2050 mm |
| Material Specifications | |
| Pocket spring height | 80–250 mm |
| Spring central diameter | φ40–76 mm |
The QD5 Pocket Spring Cutting Machine is designed for precise and efficient cutting of pocket spring rows in mattress production. It supports various spring heights and diameters while maintaining consistent cutting quality at high speed, reducing manual handling and increasing productivity.
Model: QD5 Cutting Speed: About 25 cuts/min Cutting Interval: ≥ 1 pocket spring Air Requirement: 0.3 m³/min, 0.6 MPa Power Requirement: 3P 380V 50Hz (customizable) Total Power: 3 kW Gross Weight: About 900 kg Machine Size: 4200 × 850 × 2050 mm Pocket Spring Height: 80–250 mm Spring Central Diameter: φ40–76 mm
Daily: Clean blades and conveyor of dust, lint, and debris. Weekly: Check blade sharpness; replace if necessary. Monthly: Inspect drive belts, tension, and lubrication. Quarterly: Check all electrical connections and pneumatic lines.
Only trained personnel may operate the machine. Never reach into the cutting area during operation. Ensure protective covers are in place. Disconnect power and air before maintenance or blade changes.
The QD5 can cut pocket spring rows at about 25 cuts per minute, depending on the material and settings.
Pocket spring height: 80–250 mm
Spring central diameter: φ40–76 mm
Air requirement: 0.3 m³/min, 0.6 MPa
Power requirement: 3P 380V 50Hz (customizable for other regions)
The QD5 measures about 4200 × 850 × 2050 mm. We recommend leaving at least 0.8 m of clearance around the machine for operation and maintenance.
Yes, the QD5 is designed to integrate with most pocket spring production lines and can work seamlessly with spring assembly and gluing machines.
Yes, once the pocket spring rows are fed into the machine, the cutting process is automated. Operators only need to monitor and collect finished units.
Daily: Clean the blade area and conveyor of dust and debris.
Weekly: Check blade sharpness; replace if necessary.
Monthly: Inspect belts, pneumatic lines, and lubrication points.
12 months from installation date, covering manufacturing defects and main components (wear parts excluded).
Yes, we offer on-site installation and operator training, as well as remote technical support.
